High Quality
Instruments For
Pharma R&D And
QC Applications

• Designed for LOGAN UDTs, but works with most dissolution tester brands
• Simultaneous filling of 6 vessels less than 2 minutes
• Unlimited users and security groups
• 99.00% volumetric accuracy* (*250 mL and above)
• Compatible with surfactants up to 2% SLS
• Tank heat up: ambient to 37 °C in less than 25 min.
• No tank dead volume
• Very easy to switch tanks

• Fills media replacement vessels
• Consistent deaeration across all six vessels <6 ppm
• 21 CFR Part 11 compliant w/ robust audit trail
• Fully configurable security system
• Unlimited methods
• Serial number traceability to the dissolution tester, DO and pH meter
• Detailed reports

Improper and inconsistent media deaeration can cause dissolution results to go out of specification (OOS) leading to internal CAPA investigations and scrutiny by regulatory agencies. This is partly due to the highly manual process of media mixing, deaeration, and accurately dispensing into dissolution vessels. Lab notes, if any, are logged by hand. Furthermore, single-vessel dispensing can lead to inconsistent dissolved oxygen (DO) levels from one vessel to the next. And using surfactant media can cause a whole other set of problems. The entire process lacks data integrity.

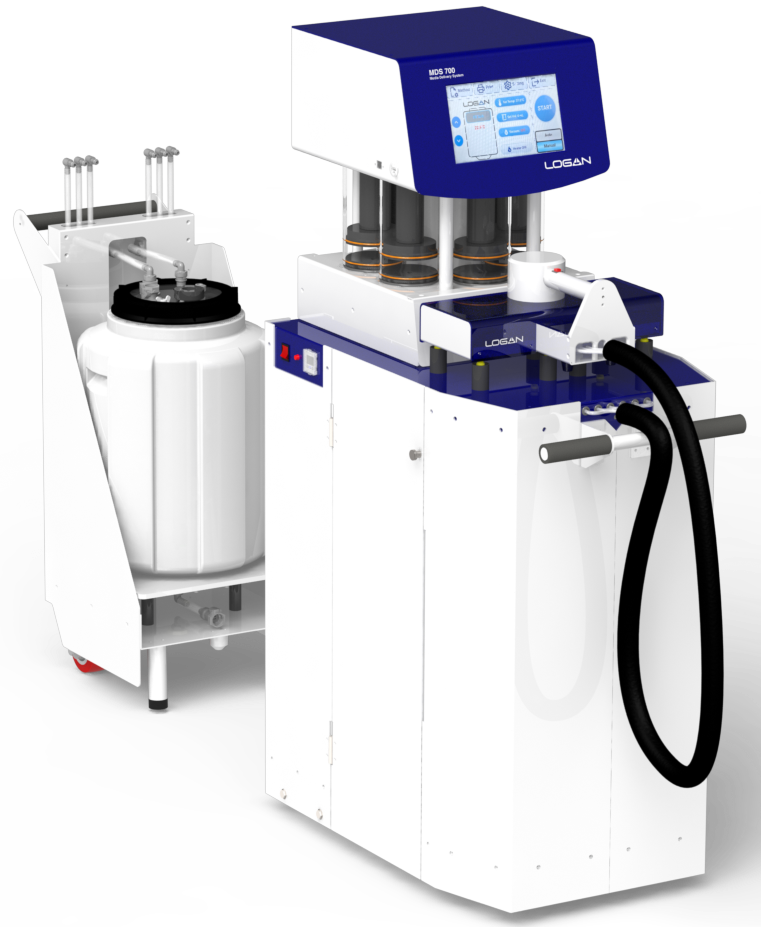

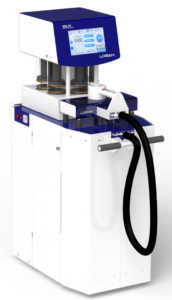

The MDS-700 is a mobile media dispensing station that deaerates and accurately dispenses into six vessels simultaneously in a tightly-controlled 21 CFR Part 11 environment. The MDS includes a single-filler wand to fill media replacement vessels and a modular cart engagement design to quickly switch from one media to the next. Using the embedded software interface, simply follow the on-screen wizard to log in, select your method, pre-heat the tank, log the serial number of the dissolution tester you’re about to dispense into, then dispense into 6-vessels, fill the media replacement vessel(s), log the pH value and pH meter serial number, log the DO value and DO meter serial number, and document any observations or noteworthy comments. The entire process is fast and results in a detailed report that is stored in long-term memory and can be printed at any time to your standard network printer or a small serial printer. The MDS has configurability to meet any I.T. security policy and the audit trail has unlimited storage with on-demand printing at any time. The MDS makes it easy to transfer methods from one MDS to another via an embedded USB port, and so much more!

DESIGN

• Designed for LOGAN UDTs, and works with most dissolution tester brands
• Mobile system, easy to move

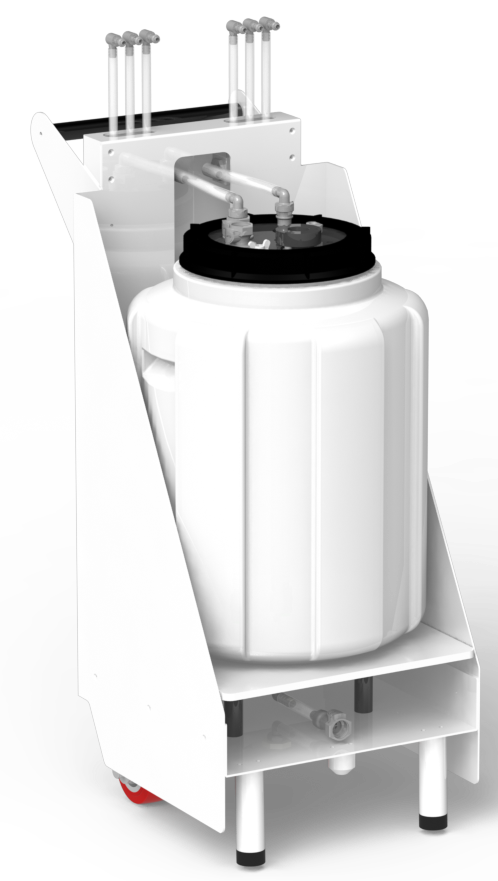

• Very easy to switch tanks (best practice: dedicate one media to one tank)

COMPLIANCE

• Meets USP and PVT guidance

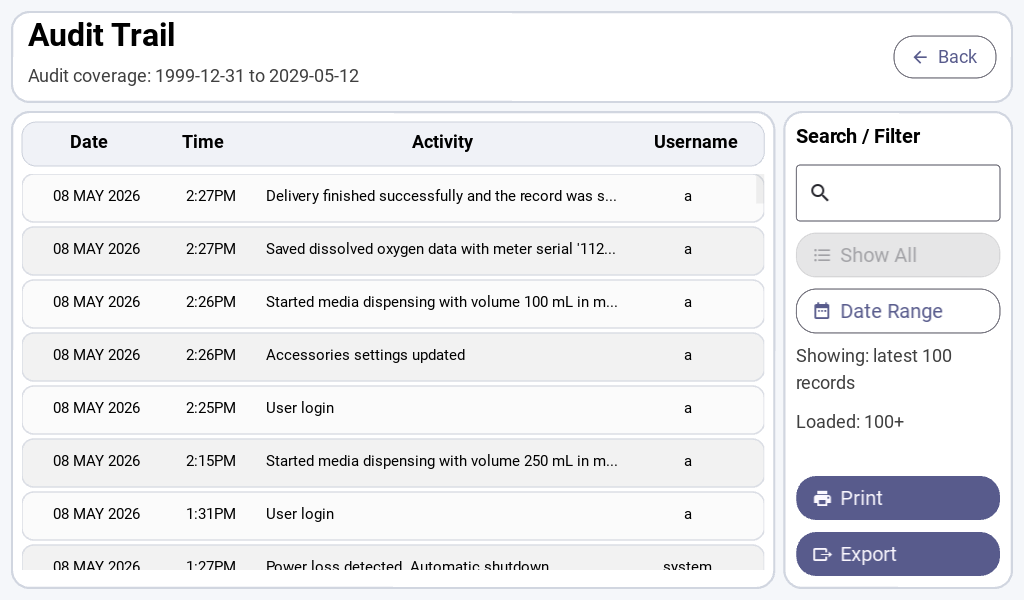

• 21 CFR Part 11 compliant w/ audit trail
• Detailed reports

DELIVERY

• Volumetric accuracy: 99.00%* (*250 mL and above)
• Vessel fill volumes: 50-1000 mL per vessel
• Filling speed: Fill 6 vessels with 1 L < 2 minutes
• Pre-saved delivery volumes: 250, 500, 750, 900, 1000 mL
• Customizable delivery volumes

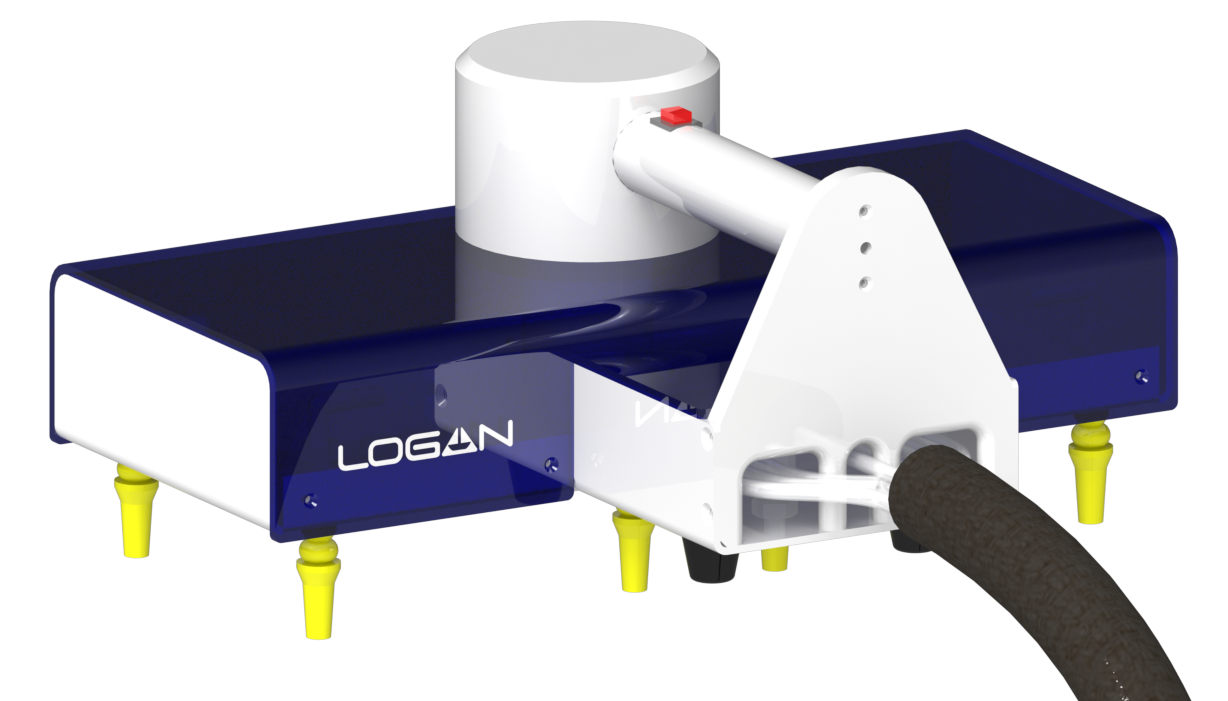

• Hands-free, sleek dispense manifold
• Includes single-filler wand for media replacement vessels
• On-demand purging and priming

DEAERATION

• Deaeration: <6 ppm
• Surfactant compatible: Up to 2% SLS
• Filtration: 45 μm
• Consistent deaeration across all six vessels

HEATING

• Temperature: Up to 45 °C
• Temperature accuracy: ± 0.3 °C
• Heating efficiency: Ambient to 37 °C in < 25 min
• External heater-controller to keep off-line media heated (optional)

TANK

• Tank dead volume: 0.00 L (zero)
• Tank capacity: 40 L

SECURITY

• Complies with your I.T. policy (fully configurable)
• Customizable security groups
• Unlimited users and groups
• Fully configurable password rules (length, complexity, expiration, etc.)

DATA INTEGRITY

• Serial number traceability to dissolution tester
• Serial number traceability to off-line DO and pH meters

PRINT

• On-demand printing to embedded printer or to A4 / Letter network printer
• Detailed printed reports (delivery reports, security groups, audit trail, methods, etc.)

USER INTERFACE – SOFTWARE

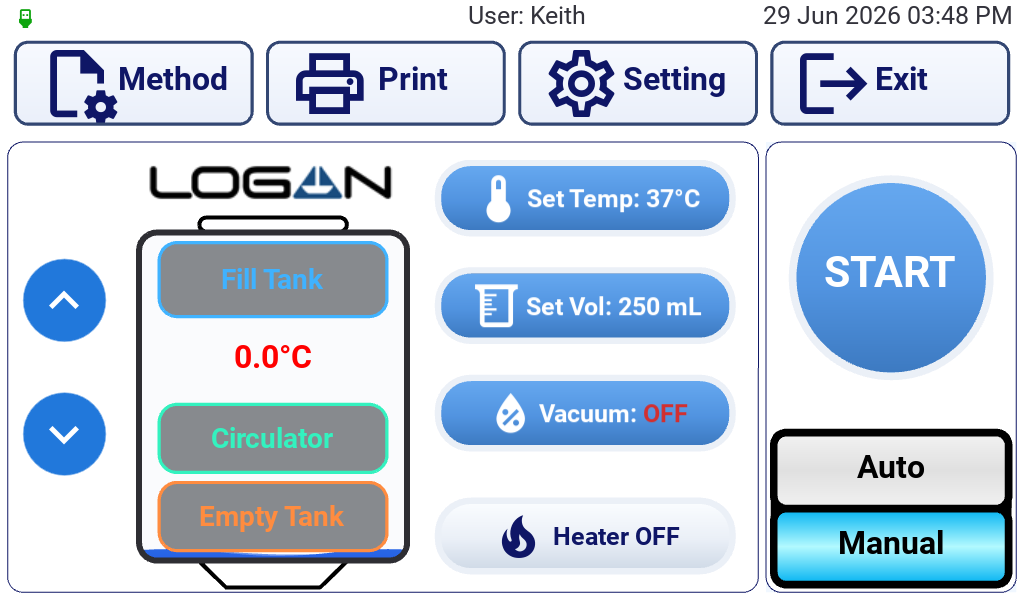

• Large touchscreen user interface

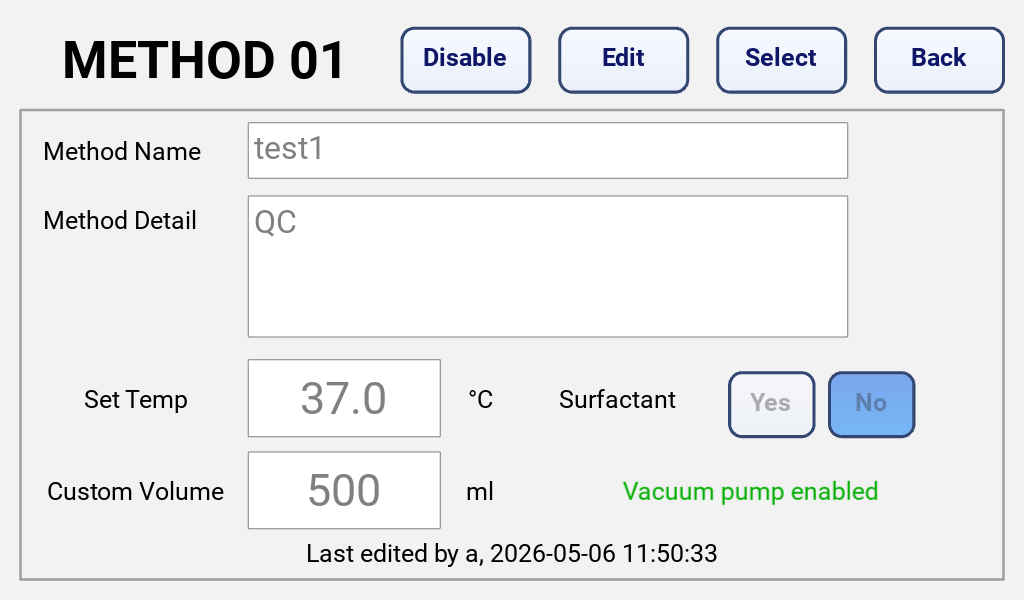

• Unlimited methods
• Storage of last 100 dispense run reports

DOCUMENTATION

• Includes IQ & OQ documents
• Certificate of conformity

OTHER

• L x W x H inches: 43 x 23 x 59 (cm: 109 x 58 x 150)
• Power cord: 24-foot power cord (7.3 m)
