Automated 12-Vessel Dissolution System

System 860

  • Dissolution System 860BDL

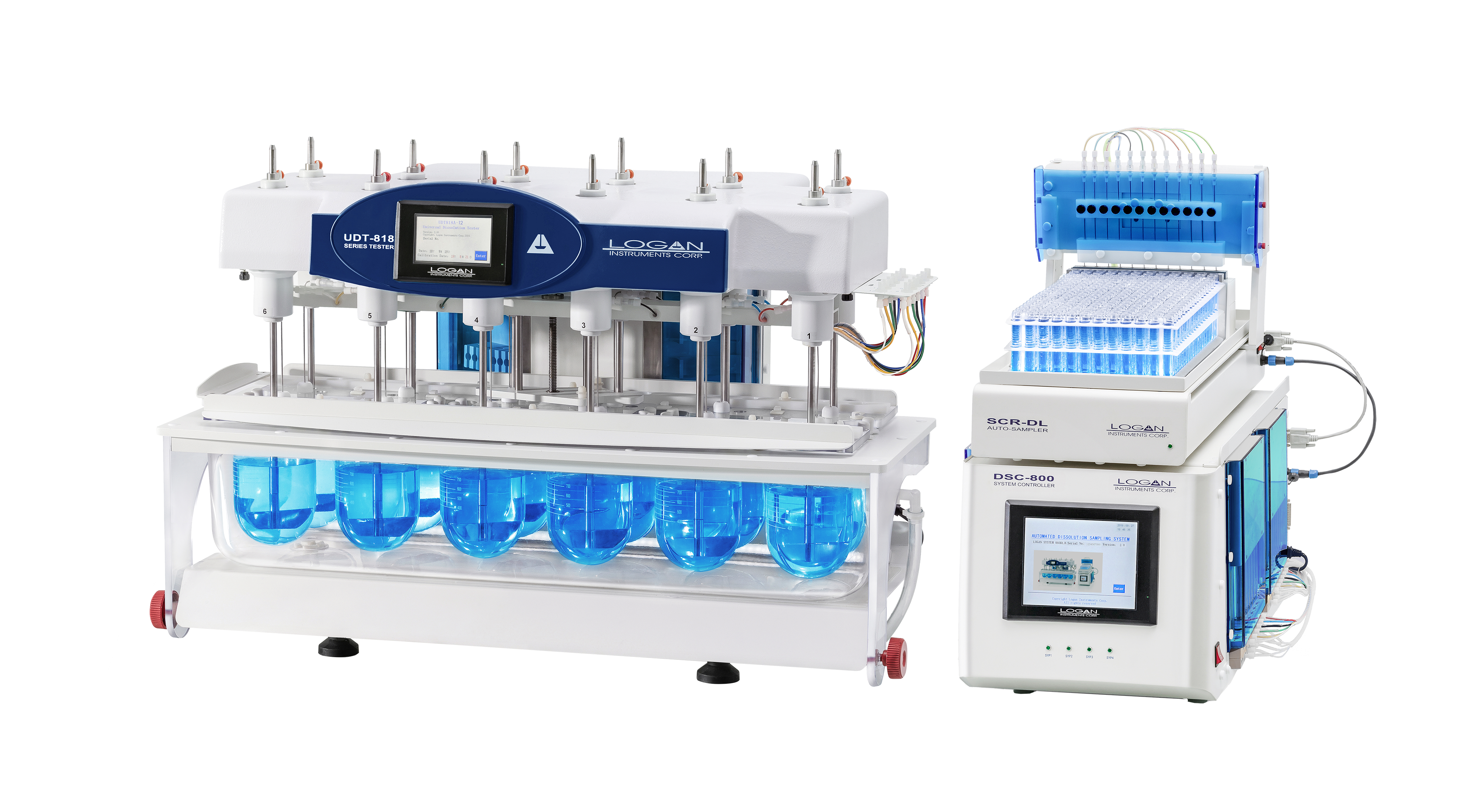

SYSTEM 860 is a high-precision 12-vessel dissolution test system for USP Apparatus 1, 2, 5, and 6. The system includes the dissolution tester, a 12-channel syringe pump autosampler, and a 12-needle sample collector. It is used for drug research and development, and dissolution evaluation of generic drugs.

Features
  • 12-position for N=12 or two N=6 tests for generic vs. innovator comparison
  • Precision 12-channel syringe pump autosampler
  • Powerful touchscreen user interface for complete control of the dissolution process: sample volume, time interval, rotation speed, temperature, etc.
  • On-board storage compartments for dissolution accessories
  • Dual filtration compatibility with sample probe pre filters and syringe filters at the collection needles
  • Single-piece vessel cover design which eliminates media evaporation
  • Automated dosage dropping tray drops 12 tablets simultaneously
  • Backlight kits to easy visual observation of the dissolution process
  • On-board external heater circulator
  • Stores up to 100 methods
  • Three security levels and full audit trail
  • 21 CFR Part 11, USP, EP, JP, CP compliant
Extended Functions
  • Compatible with basket, paddle, paddle over disk, and rotating cylinder USP apparatus types
  • Compatible with the Logan PERMETRO™ system for bioavailability and pilot BE studies
  • Comes standard with a 12-channel precision syringe pump autosampler, sample collector, HPLC vial tray, and test tube tray
  • Ability to run with on-line UV
  • Optional remote monitoring system which allows test status to show on mobile devices
System 860 Includes
UDT-818-12 Auto Sampling System

Speed: 25-250 rpm ±1 rpm

Resolution: 0.1 rpm

3/8 inch shafts: 12 ea.

Paddle blades: 12 ea.

40 mesh baskets:12 ea.

Built-in heater-circulator

Temperature range: ambient to 45 °C ± 0.1 °C

Dimensions: 94 cm × 60 cm × 64 cm (W x D x H)

Waterbath: One piece molded PETG waterbath

Power: 110 V AC, 50/60 Hz      220 V AC, 50/60 Hz

12-position precision syringe pump

Sample collector: 1-10 mL

HPLC vial rack

Glass tube rack

Collection: up to 20 time points per sample rack

Volumetric accuracy: 0.1 mL

Users: 100

Storage up to 100 methods

Multi-language support

Built-in printer

Color touch screen

Dimensions: 56 cm × 90 cm × 51 cm (W x D x H)

Power: 110 V AC, 50/60 Hz      220 V AC, 50/60 Hz
