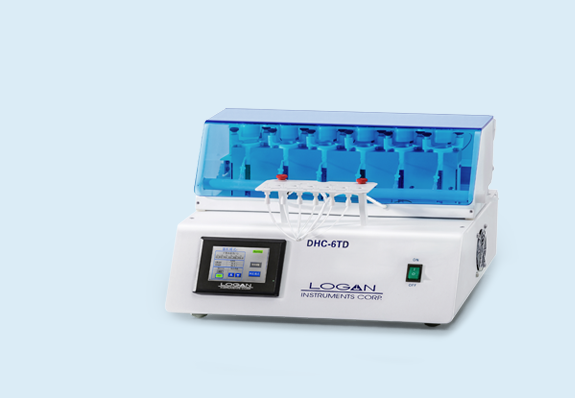

Dry Heat Diffusion Cell Drive Console for IVRT and IVPT Applications

The DHC-6TD is a dry heat diffusion cell console featuring a heater, a color touchscreen and an individual cell temperature monitor.  When connected to an automated sampling system, it becomes a fully automated dry heat diffusion testing system. With a modular design, it supports up to 24 cells and is suitable for both IVPT and IVRT methods. The system is compatible with up to four DHC-6TD consoles for parallel experimentation. Designed for flexibility, it is ideal for testing creams, lotions, gels, and ointments, and can be used with human skin or synthetic membranes.

Features

• Aliquot or full media replacement sampling programmability
• Dry heat technology: no waterbath
• Bubble-free system with motorized tilt to purge air bubbles at each time point
• Two programmable speed zones per console
• Heated donor chamber
• Individual cell temperature monitoring directly below the membrane surface
• Optional infrared membrane surface temperature monitoring
• Independent sampling fluidics per 6-cell console eliminate cross-contamination risk
• Available in 5, 7 and 9 mL receptor volumes
• Environmental protective cover
• Collect in test tubes or HPLC vials
• 21 CFR Part 11, USP, EP, JP, CP compliant

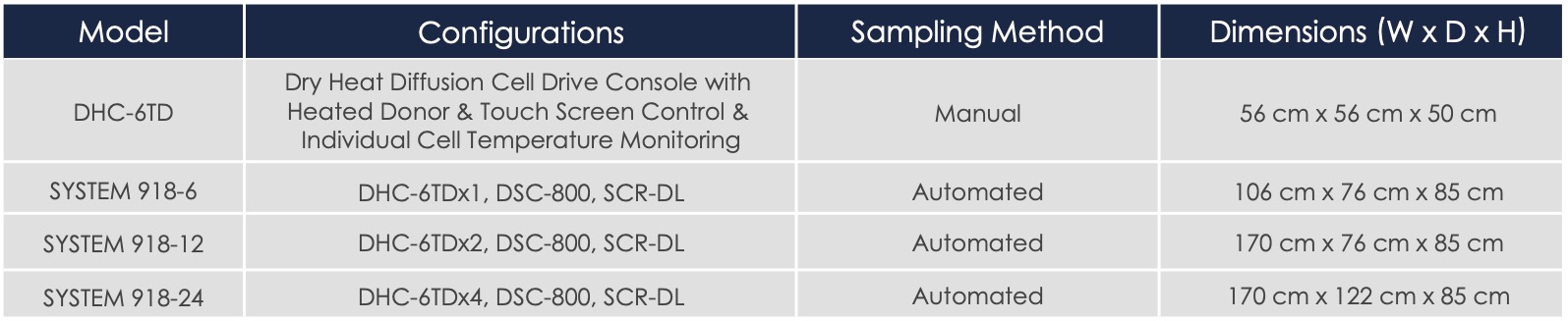

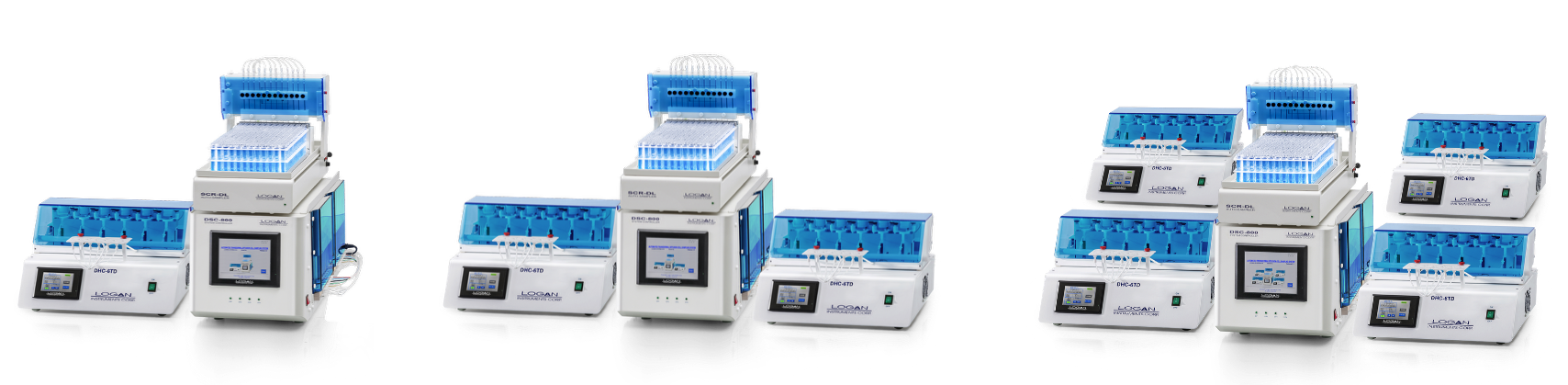

Configurations

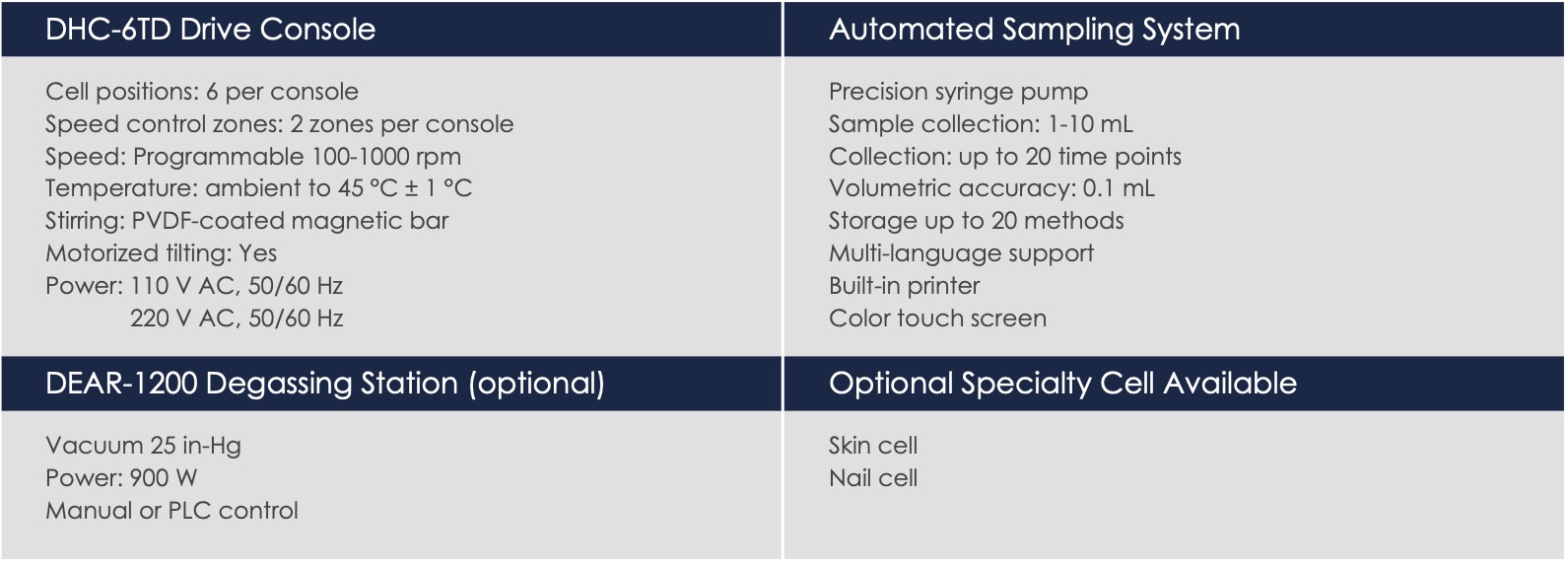

Specifications
