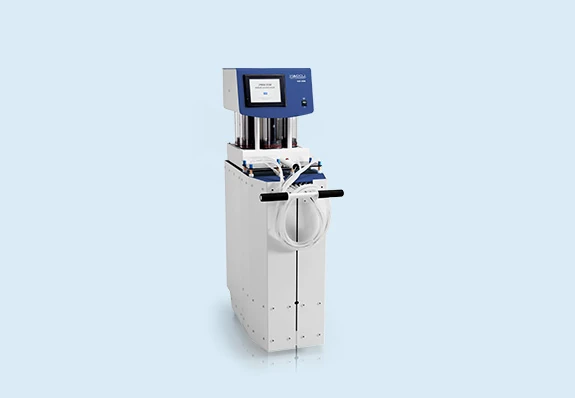

Automated 6-Vessel Media Delivery System with Heating and Deaeration

The MDS-600PL is a mobile media delivery system that preheats, deaerates, and delivers dissolution media, including surfactant media, simultaneously to six vessels across most dissolution vendor platforms. Fully compliant with the USP, including the USP toolkit where dissolved oxygen should be below 6 ppm, the MDS systems comes standard with a programmable user interface, security, audit trail, methods, and printouts. The MDS-600PL is designed to save time, save space, save money, and reduce OOS non-conformances when compared to bench-top media prep stations or manual media preparation processes.

Brochure(click below to download): MDS-600PL

Key Features

• Deliver volume accuracy: ±1%
• Deaeration performance: <6 ppm
• Deaeration method: heating, high-speed circulation, vacuum filtration
• Vacuum filter cartridge (PE): 45 μm
• Temperature range: ambient – 45 °C
• Delivery temperature accuracy: ⼟0.3 °C
• Ambient to 37 °C tank heat and deaeration time could be within 25 minutes
• Media tank capacity: 40 L
• Pre-saved delivery volumes: 250, 500, 750, 900, 1000 mL
• Delivery time to dispense 1000 mL simultaneously into 6 vessels could be within 2 minutes
• Surfactant compatibility: up to 2% SLS
• Ability to deliver into (up to) 6 vessels simultaneously
• Tank dead volume: Zero
• Ability to add additional media tanks
• Mobile system with wheels
• Power cord length: 12 ft.
• Handheld oxygen sensor
• User management: 100 users
• Method storage: 20
• Built-in printer
• Printed report for date, time, media type, volume, temperature
• Dimensions: 105 cm x 40 cm x 150 cm
• Power: 110 V AC, 50/60 Hz; 220 V AC, 50/60 Hz
