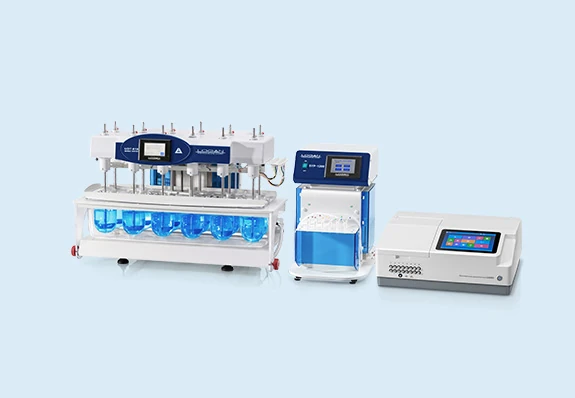

8/12 Positions Automated Dissolution UV System

SYSTEM UV 1900-8/12 is an automated dissolution UV system with 8/12 positions. It contains a UDT series dissolution tester, a SYP 800/1200 syringe pump, UV photometer and ADUV software package. This system can analyze dissolution samples online and provides full dissolution reports.

Features:

• Simultaneous dissolution testing of 8/12 samples
• Built in dissolution accessory compartment for easy organization
• Backlight kit for easier dissolution test observation
• Precise syringe pumps ensure sampling accuracy and avoid human error
• Prevents data deviation caused by evaporation and oxidation
• Standard 10mm path length flow cell and other path length flow cells available for dilution
• Dual filtration
• High/low dissolution curve to qualify pass/fail dissolution samples
• Dissolution profile from multiple sampling points
• Supports data audit tracking, that complies with FDA 21 CFR Part 11 requirements

Extended functions:

• Expandable to 2 or 3 speed zones, which provides different stirring rate, and shortens R&D duration
• Compatible with mini vessel apparatus, rotation cylinder apparatus, paddle over disk apparatus and flow-through cell apparatus
• Compatible with basket method/paddle method, and can record dissolution image
• Temperature sensor in each dissolution vessel to examine and record temperatures individually
• Dual vessel cover, totally eliminates media evaporation
• Supports remote monitoring of application
