Automated Transdermal Franz Diffusion Cell Sampling System (Water Jacket)

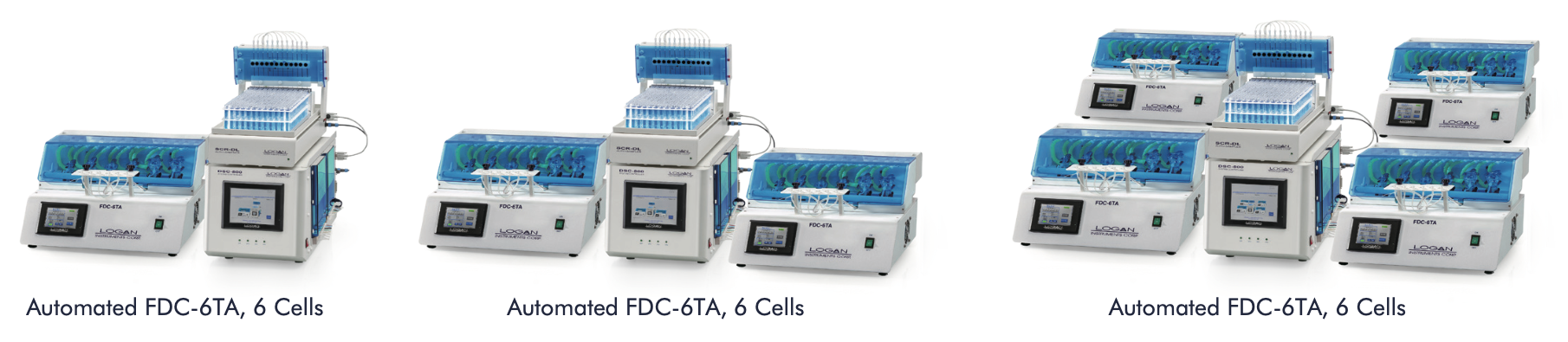

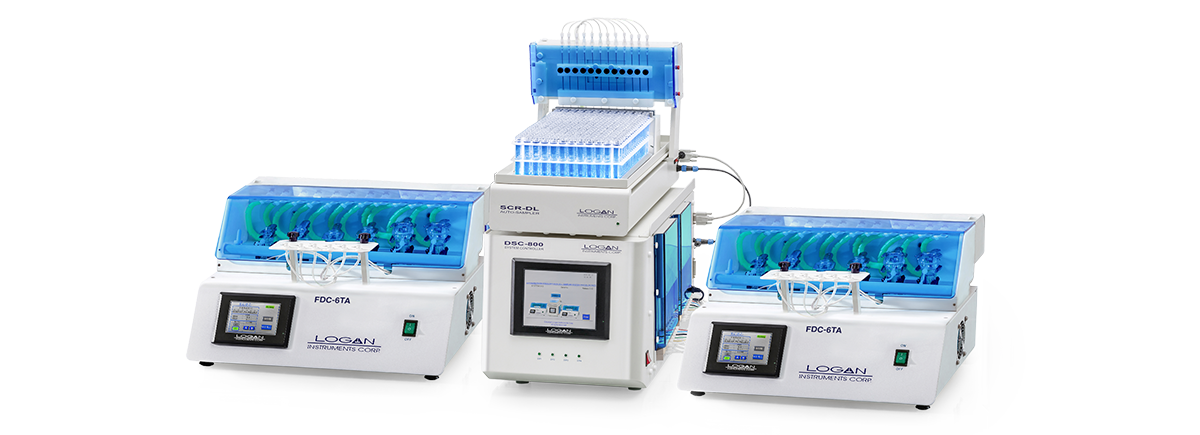

SYSTEM 913A-12 is an automated 12-position transdermal franz diffusion cell system designed by updated technology. It contains two FDC-6TA vertical transdermal diffusers, a SCR-DL sample collector, dual SYP-12L-10mL syringe pumps, and a DSC-800 system controller.

Application:

• It is designed for testing in-vitro permeation rate of semi-sold dosage and topical drug formulation, as well as for cosmetic products, such as ointment, gels, transdermal patches, face masks, lotion, sunscreen, etc.
• Bubble free Franz diffusion cell
• Automated sampling system
• Precise syringe pumps ensure accurate sampling and avoid human errors

Features:

• Water jacket heating system ensures temperature accuracy
• Simultaneous permeation test of 12 samples
• Variable thickness gaskets for controlling sample volume
• Two-zone-system with 3 positions per zone
• Data audit tracking function available that complies with FDA 21 CFR Part 11 requirements

Extended functions:

• Upgrade to a system with multiple transdermal diffusers
• Optional online degasser
