Automated Diffusion Test System for IVRT and IVPT Applications

System 918

  • System 918-12

SYSTEM 918-12 is a fully automated dry heat, modular 12-cell diffusion sampling system with unique temperature monitoring for both IVPT and IVRT methods. Suitable for creams, lotions, gels, and ointments, SYSTEM 918-12 is designed for flexibility with applications that require real skin or synthetic membranes.

🔗Brochure
Features
  • Aliquot or full media replacement sampling programmability
  • Dry heat technology: no waterbath
  • Bubble-free system with motorized tilt to purge air bubbles at each time point
  • Two programmable speed zones per console
  • Heated donor chamber

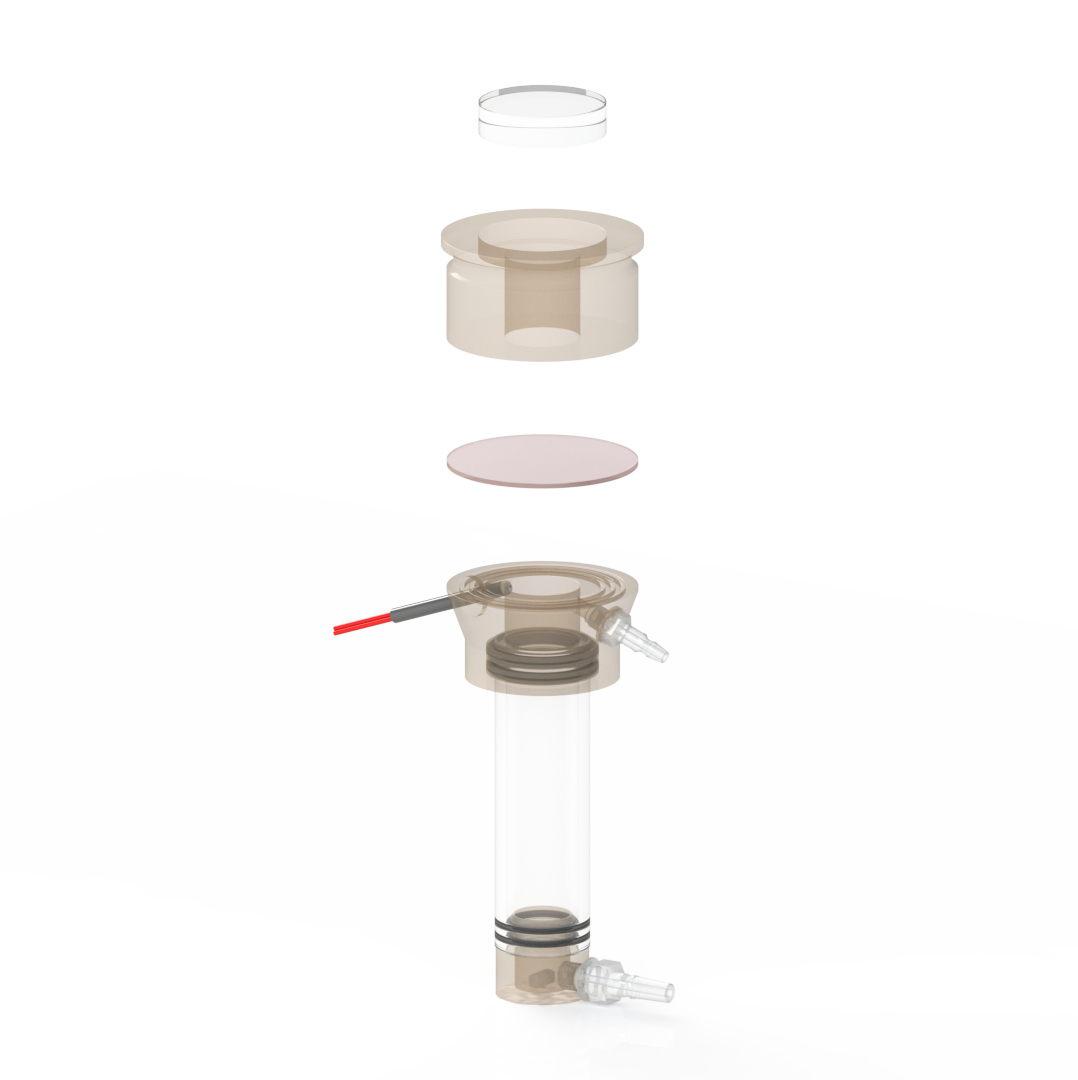

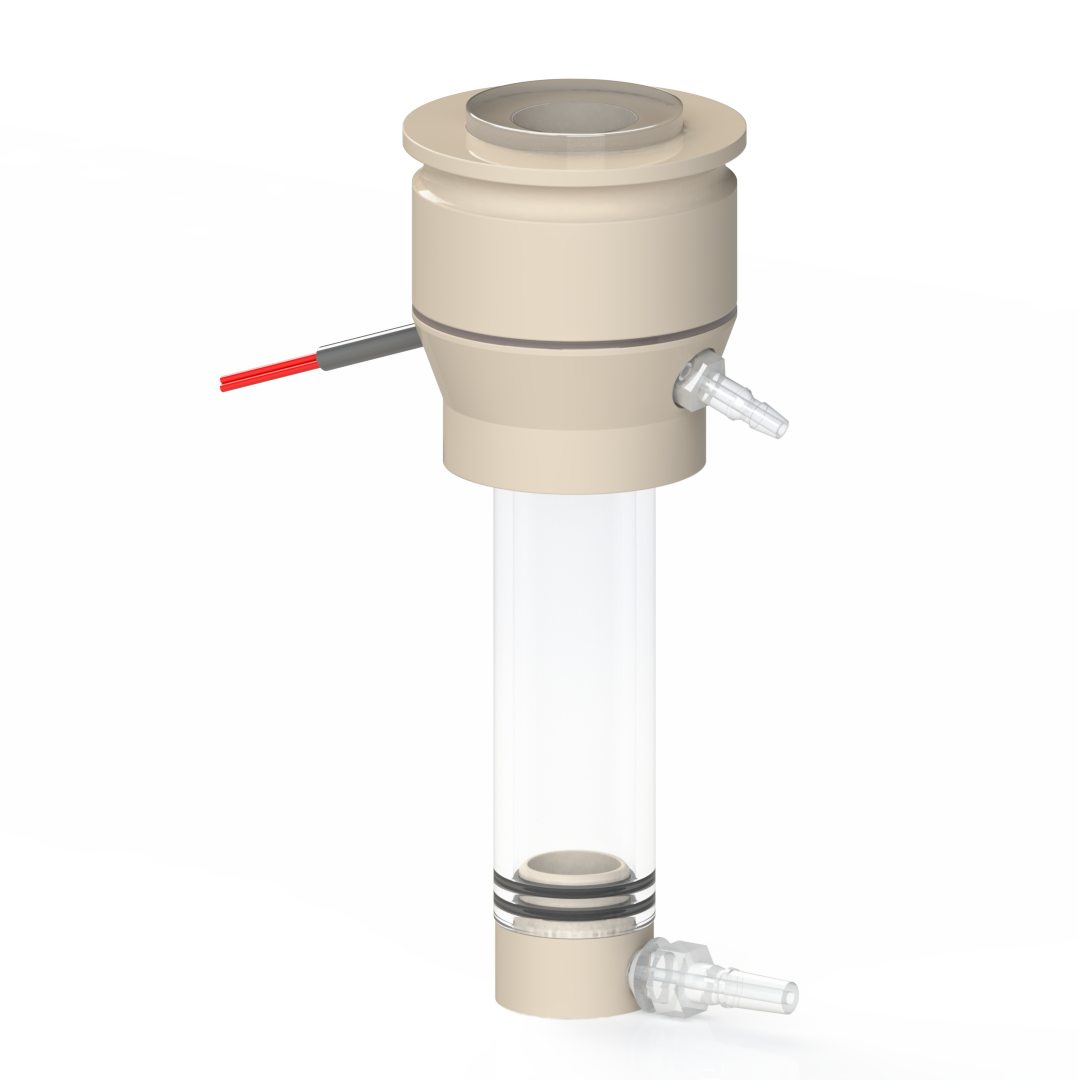

  • Individual cell temperature monitoring directly below the membrane surface
  • Optional infrared membrane surface temperature monitoring
  • Independent sampling fluidics per 6-cell console eliminate cross-contamination risk
  • Available in 5, 7 and 9 mL receptor volumes
  • Environmental protective cover
  • Collect in test tubes or HPLC vials
  • 21 CFR Part 11, USP, EP, JP, CP compliant
Configurations
  • DHC-6TD: Dry Heat Diffusion Cell Drive Console with Heater & Touch Screen Control & Individual Cell Temperature Monitoring; Manual
  • System 918-6: DHC-6TD x 1, DSC-800, SCR-DL; Automated
  • System 918-12: DHC-6TD x 2, DSC-800, SCR-DL; Automated
  • System 918-24: DHC-6TD x 4, DSC-800, SCR-DL; Automated
System 918 Includes
DHC-6TD Drive Console Automated Sampling System

Cell positions: 6 per console

Speed control zones: 2 zones per console

Speed: Programmable 100-1000 rpm

Temperature: ambient to 45 °C ± 1 °C

Stirring: PVDF-coated magnetic bar

Motorized tilting: Yes

Power: 110 V AC, 50/60 Hz   220 V AC, 50/60 Hz

 Precision syringe pump

Sample· collection: 1-10 mL

Collection: up to 20 time points

Volumetric accuracy: 0.1 mL

Storage up to 20 methods

Multi-language support

Built-in printer

Color touch screen

Power: 110 V AC, 50/60 Hz   220 V AC, 50/60 Hz
DEAR-1200 Degassing Station (optional) Optional Specialty Cell Available

Vacuum 25 in-Hg

Power: 900 W

Manual or PLC control

Skin cell

Nail cell
